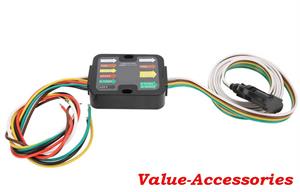

5 to 4 Wire Converter Trailer Connector, Universal Fitment

• TRAILER CONNECTOR: Converting vehicles with separate turn and stop lights to standard 2 wire trailer wiring, providing a trailer connector on your vehicle by splicing into the electrical system vehicle.
• WIDELY USED: Comes with a standard 4‑way flat plug for connecting trailer taillights, brake lights, and turn signals. Up to 5.0 amps for turning and R / L brake.
• PREMIUM MATERIAL: Made from high quality plastic material with advanced manufacturing technology.
• DUST COVER: Equipped with a dust cover, keeping the connector clean when not in use, protecting the connector terminal from rain and rust, ensures good conductivity.
• COLOR CODED: Color coded and pre stripped standard cables for easy installation.

Specification:

Output Type: 4 Way Flat 60 Inches
Turn and Brake Circuits: Maximum 5 Amps Per Circuit
Tail Light: 7.5 Amps Per Circuit

Wire Configuration:
Black: 12V+ Battery Power
Green: Right Turn
Red Stop/brake Lights
Yellow: Left Turn
Brown: Tail Lights
White: Ground (Vehicle Side)
Output Type: 4 Way Flat Panel 60 Inches
 Turning and Braking Circuits: 5 Amps Maximum Per Circuit
Tail Lights: 7.5 Amps Per Circuit
