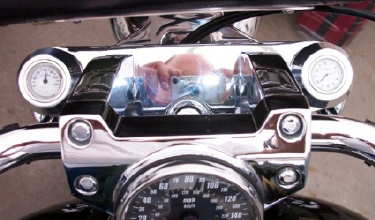

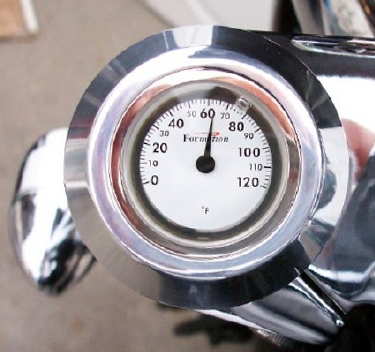

Large Billet Time & Temp Fork Caps, White or Black Face (pr)

Large, Chrome Billet Aluminum Time & Temperature Fork Caps, White or Black Face (pr)

Fits:

• VTX1800
• Valkyrie
• Kawasaki Mean Streak 1500, 1600
• Suzuiki Marauder 1600

These are extremely sharp and very functional.
Choose your face color above.

Bike list above is only bikes that we know of.  The Cap diameter is 2 9/16 Inches for reference.

You will be surprised at how good these look in conjunction with your other gauges.  This will give your bike a definite custom look.

Very easy installation using clear RTV

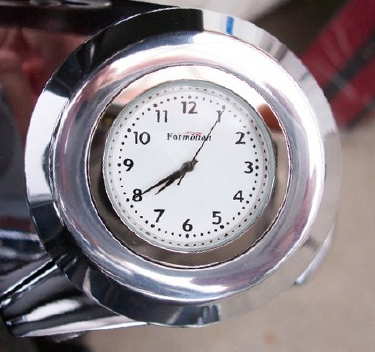

You will need to install a watch battery in the clock..

Installation Instructions:  The first step is to lower the fork tubes in the triple trees such that the top of thefork tubes are flush with the top of the upper triple tree. You want the hex of the fork cap ABOVE the top triple tree surface, the round portion of the cap should be FLUSH with the top triple tree upper surface.  You will have to jack up the motorcycle such that there is no weight on the front wheel. The best way to accomplish this is with a motorcycle/atv lift. They are available for a little as $89, and are really an essential tool for maintaining your motorcycle.   Only when the motorcycle is fully supported, with no weight on the front tire, loosen the socket head cap screws in the upper and lower triple tree clamps.  Use a rubber mallet to gently tap the top of the fork tubes, a little at a time, alternating between left and right sides, until the desired height is reached on both sides. Check the height by laying a straight edge on the upper triple tree. If the tubes are too low, put some weight on the front tire to push them back up.  Tighten and Torque the socket head cap screws which clamp the triple trees to the forks per the Honda Manual.  The Fork Cap Clock & Thermometer can now be installed using clear RTV silicone. This can be purchased at any hardware store or automotive store. Fill the counter bore in the under side of the fork caps with silicone and place over the hex heads on the forks. Use a paper towel to wipe away the excess. Align the cap so it lines up with the outside radius on the top triple tree for the cleanest look.  Allow the RTV to cure overnight. Use electrical tape to hold the caps in place.  The caps can be removed easily with some light prying, but are plenty secure for riding.  Double check that you have tightened everything before riding!!
